SPARTUS®
CUT100H
POWERFUL, HIGH PERFORMANCE PLASMA IGBT.
Technical parameters
| Input | ~3 × 400V ± 10% 50 / 60 Hz |
| Cutting current [A] | 30 – 100 |
| Max. cutting thickness [mm] | 35 |
| Duty cycle [%] | 60 |
| PLASMA PARAMETERS | |
| Recomended work pressure [bar] | 5,5 |
| Air consumption [l/min] | 200 |
| Post gas flow |  |
| HF pilot arc start | |
| 2T/4T Control | |
| OTHER | |
| Current consumpiton [A] | 21,9 |
| Power factor (cosφ) | 0,93 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP23 |
| Weight [kg] | 33,5 |
| Dimensions [mm] | 660 × 270 × 480 |
Description:

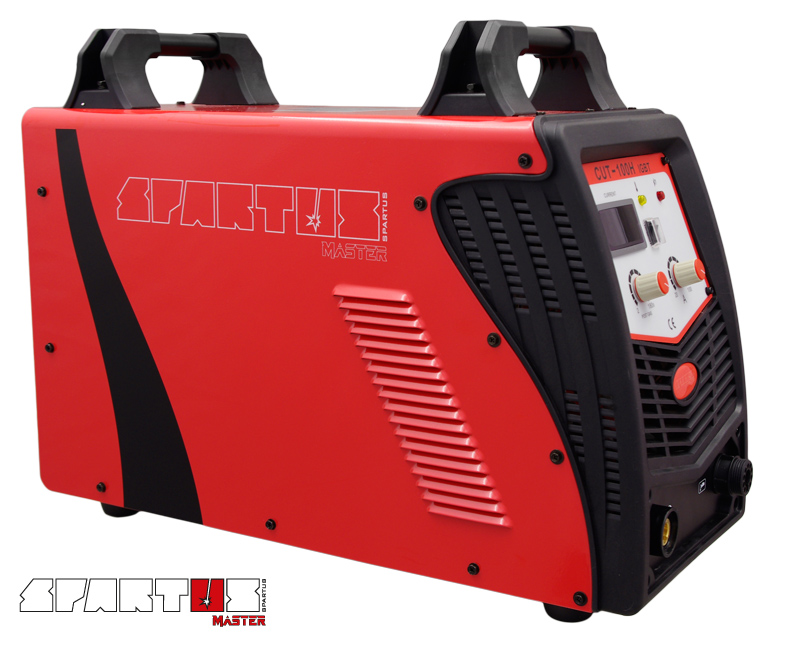

SPARTUS Master CUT100H. Professional, inverter plasma cutter, constructed on the basis of IGBTs. Designed for cutting metals and other electrically conductive materials. It is powered from three-phase 400V source power.
It is high power plasma source. Cutting current between 30 – 100A, allows to cut materials up to 35mm thickness. The parameters stabilization system, high quality plasma torch (which is included to cutter) provides great cutting performance and quality.

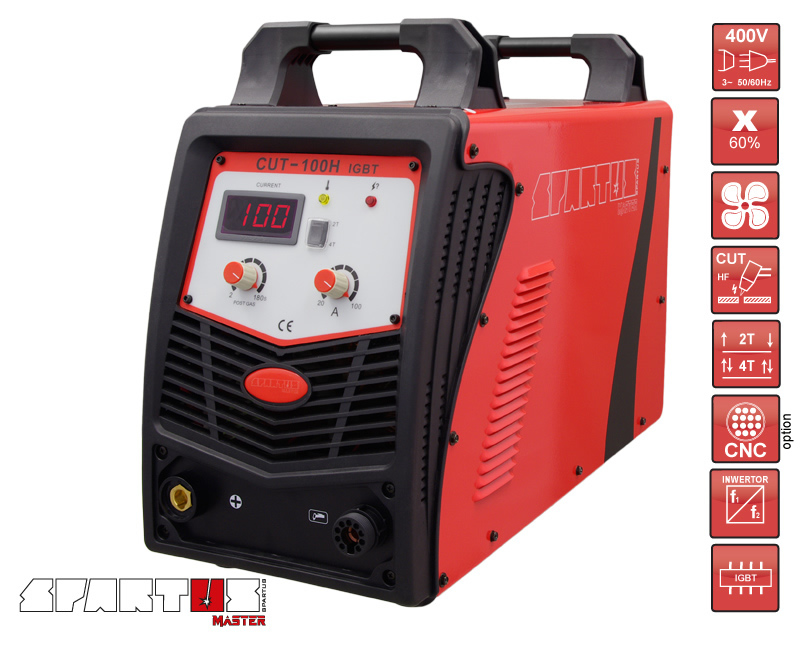

SPARTUS Pro CUT100H has user-friendly control panel with digital display parameters. It allows smooth control of cutting current and post flow function (longer life of plasma torch). Easy plasma arc ignition enables a built-in contactless HF arc ignition system. High performance cooling device and overload control system ensures trouble-free operation even in hard conditions.
Examples of use: light industrial, portable repair, production, CNC plasma tables (CNC PACKAGE).
SPARTUS® MasterCUT 100H package: SP120H 6m
Device SPARTUS® MasterCUT 100H

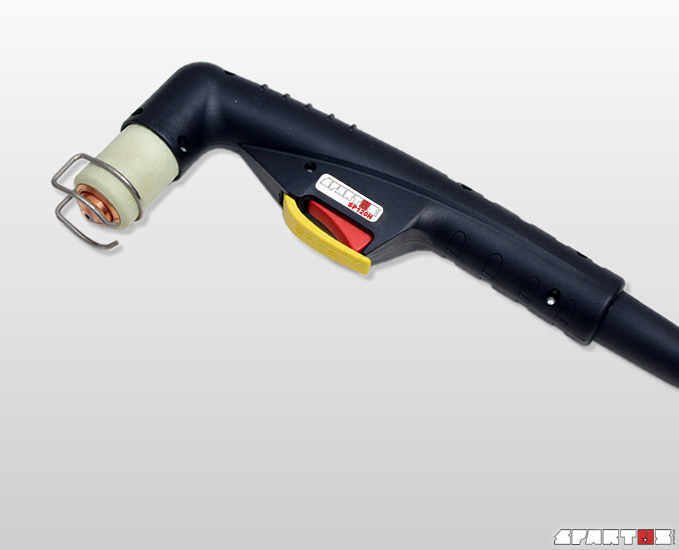

Handy plasma torch SPARTUS® 70H 6m (type: EWS® EX100)
With toolbox (free consumables kit)
Air filter with the pressure control
3m work clamp
Gas hose
User's manual
Package price [EUR]:
SPARTUS® MasterCUT 100H package: CNC SP120M 6m
Device SPARTUS® MasterCUT 100H

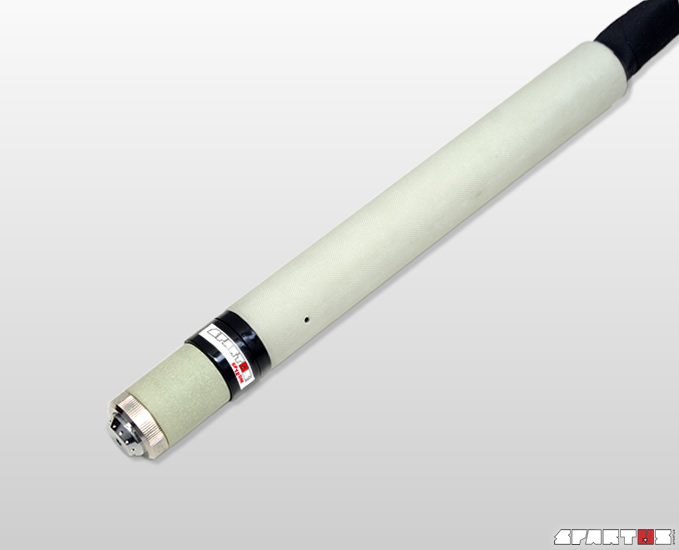

Machine plasma torch SPARTUS® 120M 6m (type: EWS® EX100)
With toolbox (free consumables kit)
Air filter with the pressure control
3m work clamp
Gas hose
User's manual
Package price [EUR]:
