SPARTUS®
CUT160
POWERFUL PLASMA CUTTER FOR SPECIAL TASKS.
The price includes package equipment:
The price includes package CNC equipment:
Technical parameters
| Input | ~3 × 400V ± 10% 50 / 60 Hz |
| Cutting current [A] | 35 – 160 |
| Max. cutting thickness [mm] | 55 |
| Duty cycle [%] | 60 |
| PLASMA PARAMETERS | |
| Output working voltage [V] | 144 |
| Recomended work pressure [bar] | 5,5 |
| Air consumption [l/min] | 200 |
| Post gas flow |  |
| HF pilot arc start | |
| 2T/4T Control | |
| OTHER | |
| Current consumpiton [A] | 42 |
| Power factor (cosφ) | 0,93 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP23 |
| Weight [kg] | 61 |
| Dimensions [mm] | 870 × 480 × 750 |
Description:

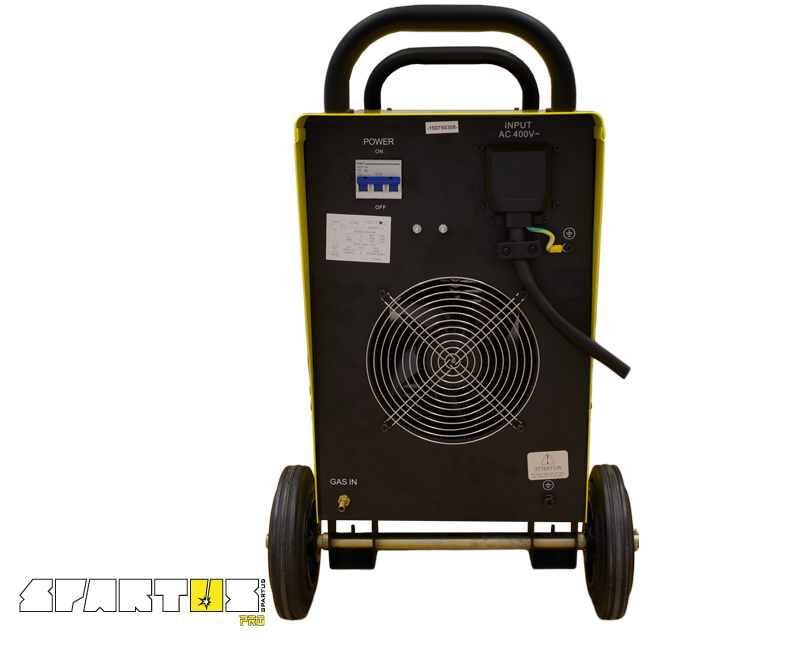

SPARTUS Pro CUT160. High-end industrial plasma cutter. Developed based on IGBT technology. Designed for cutting metals and other electrically conductive materials. It is powered from three-phase 400V source power.
Source ensures stable cutting conditions for a current up to 160A. Allows for cutting materials with maximum thickness up to 55mm. Built-in contactless HF arc ignition system allows easy plasma arc ignition, even at soiled surfaces. Parameters stabilization system provides excellent cutting quality.

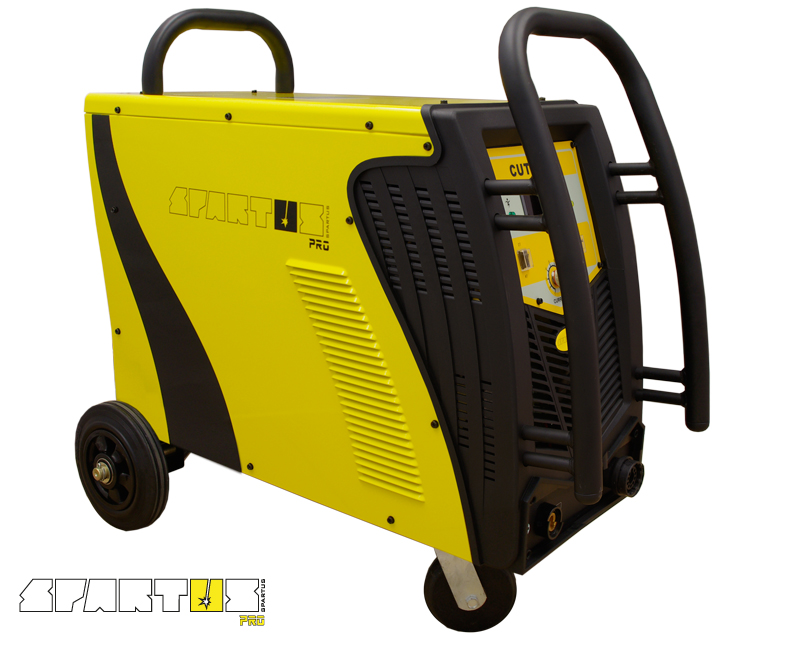

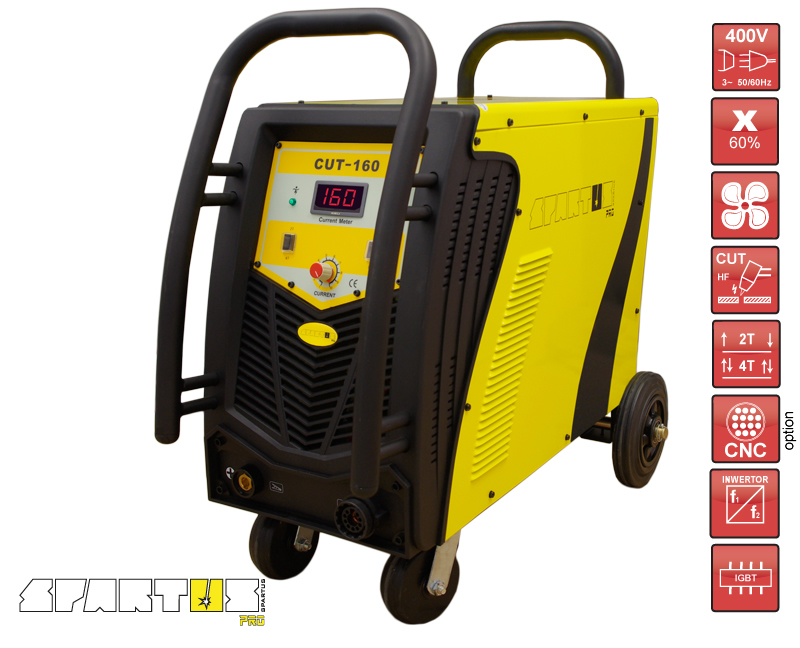

Easy-to-use control panel with display ensures precise control of parameters. Device is equipped with 2T/4T switch mode and post flow function switch (longer life of plasma torch). Wheels with front steering axle and practical carrying handle are designed for easy moving the source.
SPARTUS Pro CUT160 it’s a device for heaviest industrial use. This is combination of durable compact casing, efficient cooling system with modern technology. SPARTUS Pro series plasma cutters copes well even in the hardest conditions.
Examples of use: heavy industrial, heavy workshop, production, shipyard, railway, CNC plasma tables (CNC PACKAGE).
Package equipment:
3 meter work clamp
Air hose
Air filter with the pressure control

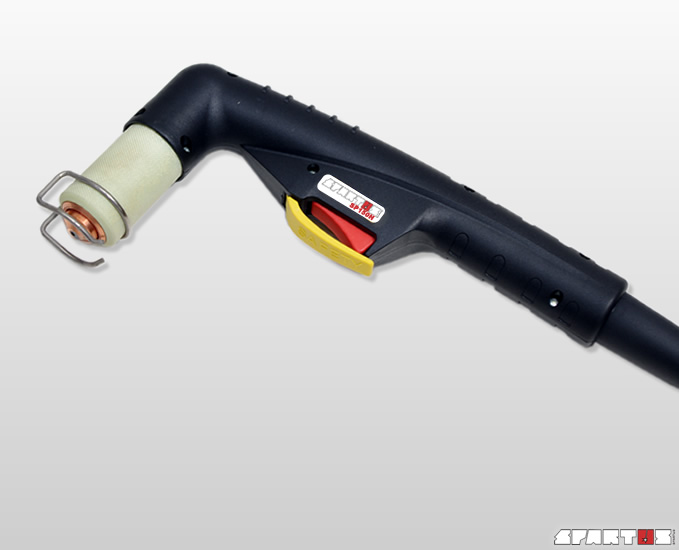

Handy plasma torch SPARTUS SP150H (consumable parts type: CEBORA® P150) 6m
with toolbox (free consumables kit)
User’s manual
SPARTUS® is not a brand-dependent and / or in any way connected with CEBORA®. Offered plasma torch is produced from a different manufacturers documentation for SPARTUS®.
Click on photo to enlarge

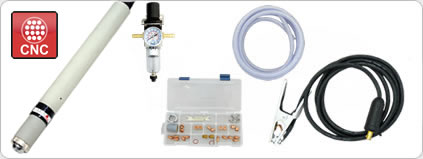

Package CNC equipment:
3 meter work clamp
Air hose
Air filter with the pressure control

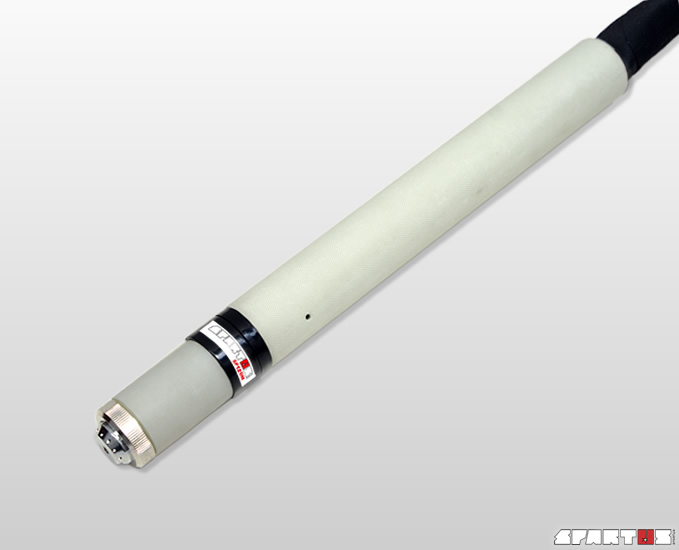

Machine plasma torch SPARTUS SP150M (consumable parts type:
CEBORA® P150) 6m with toolbox (free consumables kit)
User’s manual
SPARTUS® is not a brand-dependent and / or in any way connected with CEBORA®. Offered plasma torch is produced from a different manufacturers documentation for SPARTUS®.
Click on photo to enlarge
