CNC cutting table
SPARTUS® Easy 1000
Technical parameters
| Driving method | a stepping motor |
| Method of drive transmission | trapezoidal screw |
| Working surface [mm] | 1000 × 1000 |
| Max. cutting speed [mm/min] | 6000 |
| Max. cutting thickness [mm] | 25 |
| Control | 2-axis CNC controller |
| THC control system | - |
| Dimensions [mm] | 1400 × 1400 × 1800 |
| File format | CADCAM, DXF, DWG |
Description:

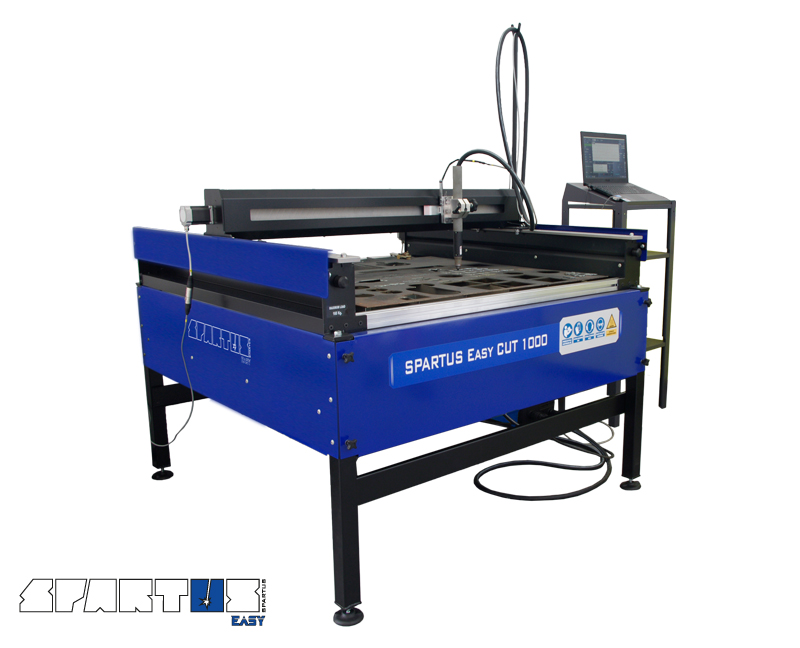

SPARTUS® EasyCUT 1000 cutting table is designed for small-sized and medium-sized enterprises. Allows to automated cutting of metal and any electrically conductive materials by using plasma torches.
In addition it is equipped with accessories: computer with software, CNC control device, anti-collision torch system, connection cables and water tank. The whole creates easy to transport and easy to assemble complete kit which is ready to use immediately after assembling.

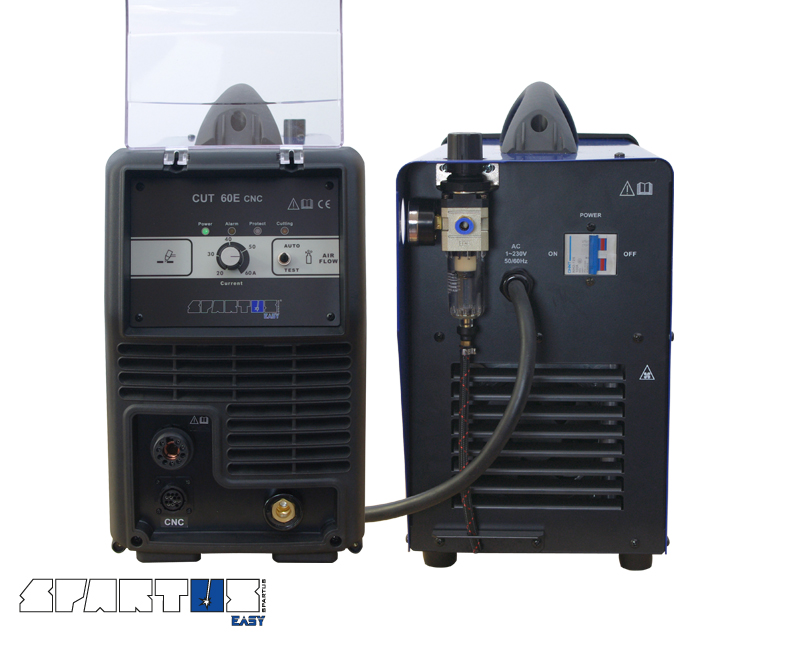

SPARTUS® EasyCUT 1000 is supplied with package with plasma cutter (SPARTUS® EasyCUT 40E CNC) which is equipped with SP80M machine torch.

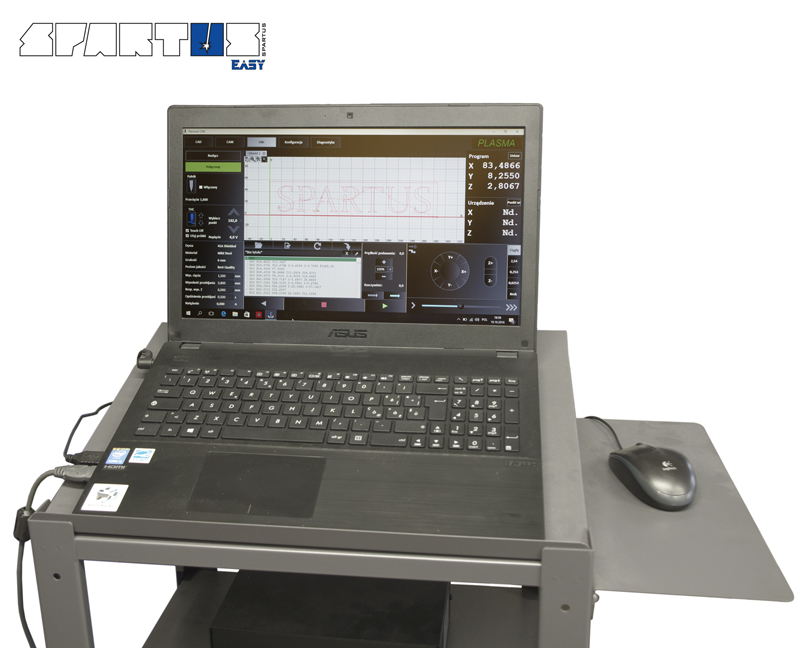

Intuitive 3in1 software is available in 9 languages including English. It allows you to perform projects in 2D (CAD), import data from the USB drive, generate files G-code (CAM). To use the software you do not need prior knowledge of such programs.

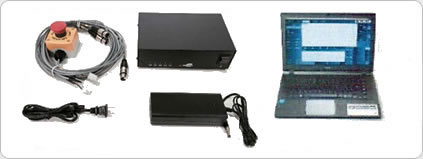

Standard equipment:
PC computer with software (notebook 15,6”)
Standing desk
CNC controller device
Anti-collision system
Water tank
Connecting cables

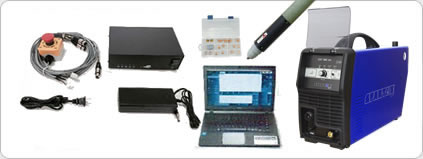

Package equipment:
PC computer with software (notebook 15,6”)
Standing desk
CNC controller device
Anti-collision system
Water tank
Connecting cables
Plasma Cutter SPARTUS® EasyCUT 40E CNC
Machine plasma torch SP80M 6m with toolbox
