MIG 160
LIGHTWEIGHT, COMPACT 2 IN 1 MIG WELDER.
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 50 – 160 |
| Duty cycle [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 17 – 22 |
| Wire feeding speed [m/min] | 2,5 – 13 |
| Wire feeder | built-in, 2-roll gear |
| Welding wire spool[kg]/[mm] | ≤ 5 / ∅200 |
| Wire diameter ∅ [mm] | 0.6 / 0.8 |
| 2T/4T Control | — |
| MMA PARAMETERS | |
| MMA welding mode |  |
| Welding current MMA [A] | 10 – 160 |
| OTHER | |
| FCAW (Flux Cored Arc Welding) | |
| Wire test | |
| Current consumption [A] | 20,6 |
| Power factor (cosφ) | 0,85 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP23 |
| Weight [kg] | 17,9 |
| Dimensions [mm] | 500 × 250 × 410 |
Description:

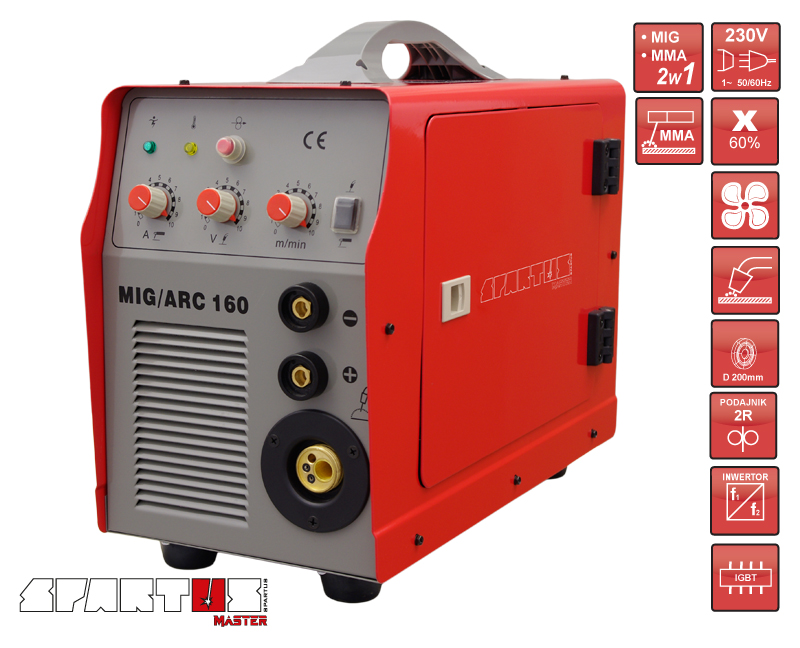

SPARTUS Mater MIG 160. Compact, inverter MIG/MAG welder with additional stick welding function (MMA). It is powered from single phase 230V source power. Maximum welding current equal 160A with high of 60% duty cycle.
Intuitive and easy-to-use control panel allows rapid selection of the optimum welding parameters. It has ability to smooth adjustment: welding voltage, wire feed speed (MIG/MAG mode); welding current (MMA mode).

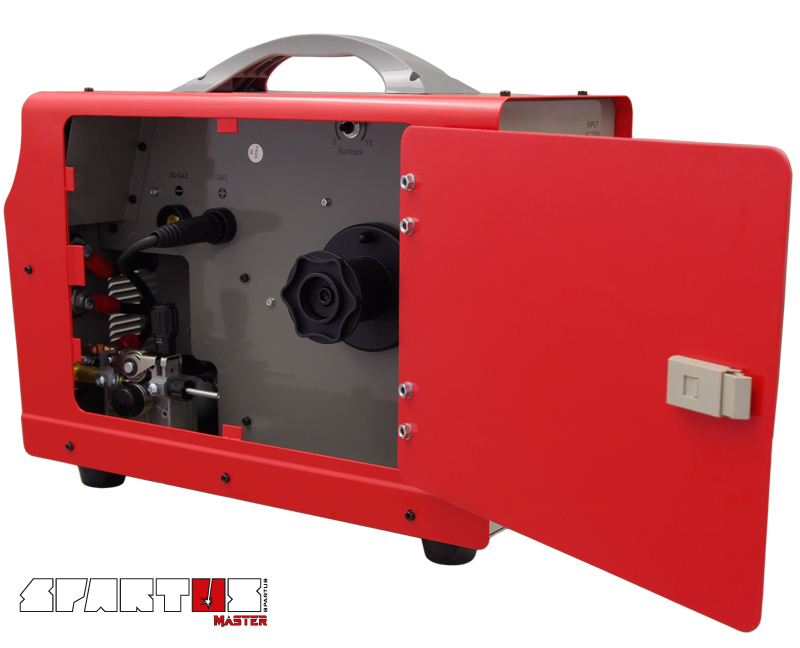

Quick connector of welding polarity and high end two-roll wire feeder - allow to easy flux-cored arc welding (FCAW).
Used in production of inverter technology guarantees excellent output parameters, stable welding arc and excellent weld quality.
Examples of use: workshop, portable repair, automotive, exhaust silencer welding.
Standard equipment:
3 meter work clamp
Gas hose with clamps
User’s manual
Package equipment:
3 meter electrode holder
3 meter work clamp
Gas hose with clamps
Gas regulator CO2
MIG gun SPARTUS Master 150 3m
User’s manual
