MIG 250
(NOT)STANDARD IGBT MIG WELDER.
Technical parameters
| Input | ~3× 400V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 50 – 250 |
| Duty cycle [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 17 – 27 |
| Wire feeding speed [m/min] | 2,5 – 13 |
| Wire feeder | built-in, 2-roll gear |
| Welding wire spool [kg]/[mm] | ≤ 15 / ∅200/300 |
| Wire diameter ∅ [mm] | 0.8 / 1.0 / 1.2 |
| 2T/4T Control | — |
| MMA PARAMETERS | |
| MMA welding mode |  |
| Welding current MMA [A] | 10 – 220 |
| OTHER | |
| Inductance control | |
| Wire test | |
| Current consumption [A] | 12 |
| Power factor (cosφ) | 0,85 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP23 |
| Weight [kg] | 28 |
| Dimensions [mm] | 640 × 290 × 620 |
Description:
SPARTUS Master MIG250. Compact inverter MIG welder constructed on basis of IGBTs. Allows welding: MIG/MAG (GMAW) and MMA (SMAW). It is powered from three phase 400V source power. Max welding current is 250A (duty cycle 60%).
Control panel is equipped with adjustment knobs: welding voltage, wire feed speed, inductance control (MIG/MAG mode); welding current (MMA mode). Digital displays of welding parameters (voltage, current) allows to precise control of welding process.

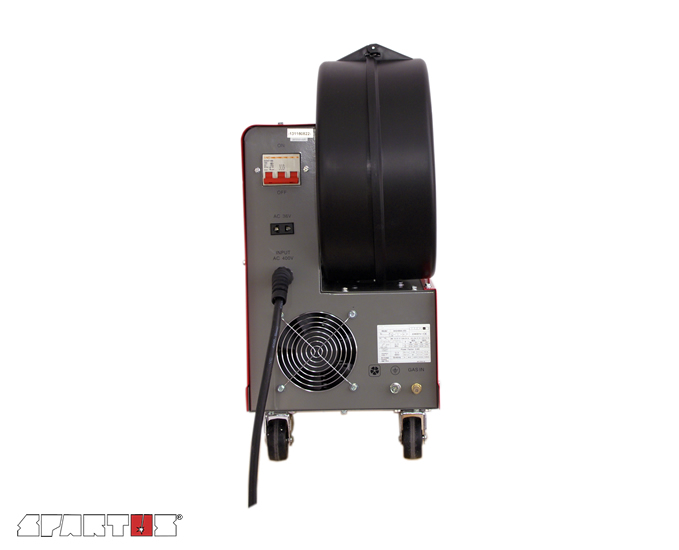

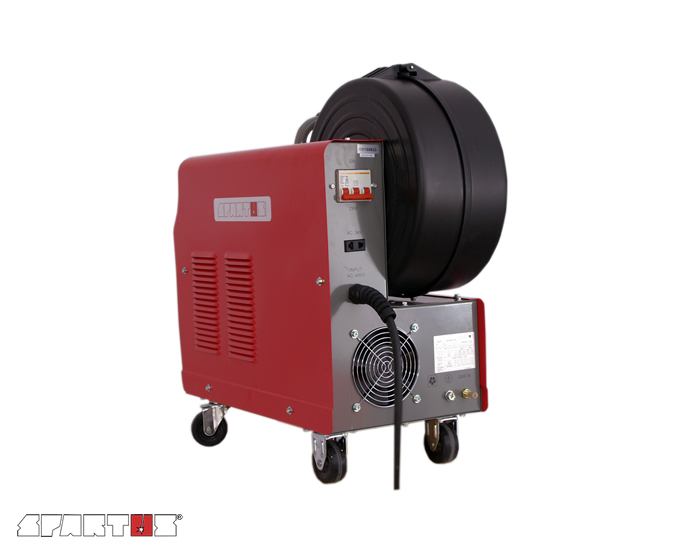

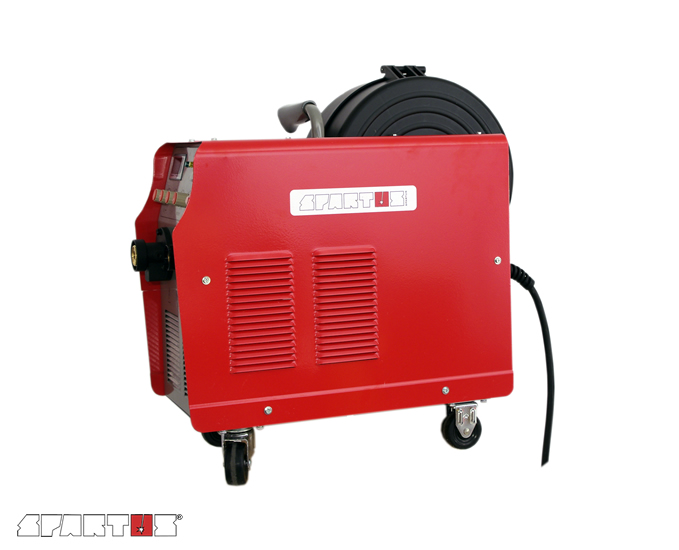

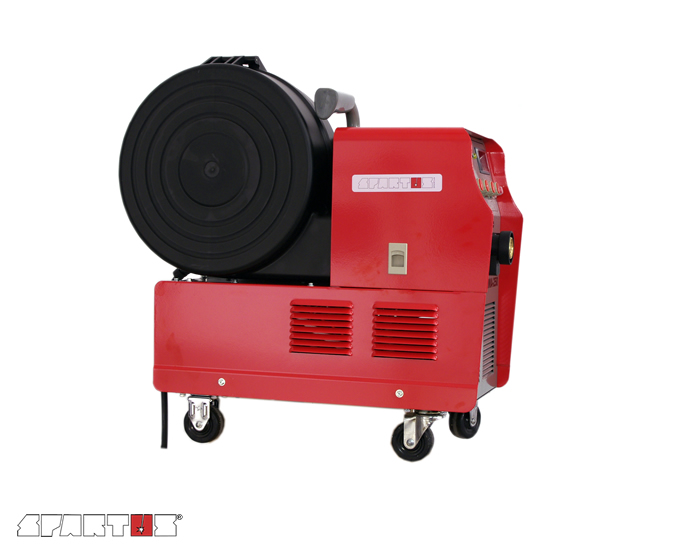

This semi-automatic welding machine is equipped with: EURO type socket, wire test function and high-end wire feeder (2roll). Robust housing has wheels (front steering axle) and convenient carrying handle. Even when using large welding wire spool (D300, 15kg) it is easy to moving machine.
Thanks to inverter technology, device has outstanding output parameters. Welding is accompanied by a small amount of spatter, which can be further reduced by proper adjustment of inductance.
Examples of use: workshop, portable repair, automotive, exhaust silencer welding, light constructions.
Standard equipment:
3 meter work clamp
Gas hose with clamps
User's manual
Package equipment:
3 meter electrode holder
3 meter work clamp
Gas hose with clamps
Gas regulator CO2
MIG gun SPARTUS Master 240 5m
User's manual
