SPARTUS®
MasterMIG
250PFC
SYNERGY MIG 3 in 1
The possibility of a professional TIG LIFT
welding with microswitch torch.
The possibility of use SPARTUS® Spool Gun
with built-in wire feeder.
More...
Technical parameters
| Input | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current MIG [A] | 25 – 250 |
| Duty cycle MIG [%] | 60 |
| MIG PARAMETERS | |
| Output working voltage MIG [V] | 26,5 |
| Wire feeding speed [m/min] | 2,5 – 16,5 |
| Wire feeder | built-in, 4-roll gear |
| Welding wire spool [kg]/[mm] | ≤ 15 / ∅300 |
| Wire diameter ∅ [mm] | 0.6 / 0.8 / 1.0 / 1.2 |
| Synergic |  |
| Synergic programs | 20 dedicated |
| Inductance control | 0 - 10 |
| Brazing (CuSi) | |
| Slow feed | 0 - 10 |
| Burnback | 0 - 10 |
| 2T/4T Control | |
| TIG PARAMETERS | |
| TIG DC welding | |
| Welding current TIG [A] | 10 – 250 |
| Duty cycle TIG [%] | 60 |
| Down slope [s] | 0 – 10 |
| Post-gas [s] | 0 - 10 |
| Arc ignition | LIFT |
| MMA PARAMETERS | |
| MMA welding mode | |
| Welding current MMA [A] | 10 – 250 |
| Duty cycle MMA [%] | 60 |
| ARC FORCE | 0 - 10 |
| HOT START | 0 - 10 |
| No-load voltage [V] | 14 |
| OTHER | |
| PFC | |
| Current consumption [A] | 27 |
| Power factor (cosφ) | 0,99 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP23 |
| Weight [kg] | 25 |
| Dimensions [mm] | 620 × 240 × 450 |
Description:

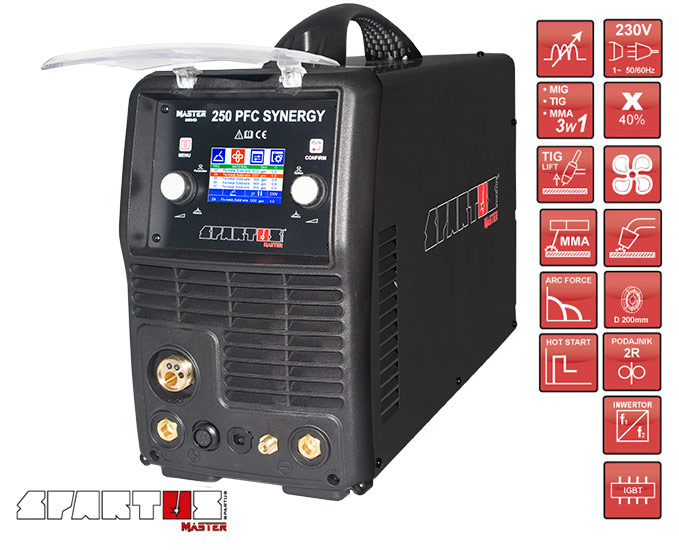

SPARTUS® MasterMIG 250PFC is a professional, portable, multi-process welding semi-automatic
device. It enables MIG/MAG, TIG and MMA welding with maximum welding current of 250A. The unit is powered from a
single-phase network 230V.
The device was produced with using of modern solutions such as inverter technology, IGBT power transistors, MCU
controller, PWM technology, PFC filter. All of our technology solutions provide stable output performance under
a variety of conditions, which has a direct effect on outstanding arc characteristics and welded joint quality.
The device has a number of functions that support MIG / MAG welding processes:
- Synergistic MIG/MAG welding mode: 20 dedicated programmes.
- Wave Control - precise arc dynamics adjustment Wave control ensures full control over the welding arc: it
allows to reduce the amount of welding splashes and controls the width and depth of fusion.
- Burn Back - precise adjustment of welding wire burning speed allows limit a risk of sticking the welding wire
to the contact tip.
- Slow Feed - so called gentle start-up of the wire feeder, recommended especially during welding with high
amperage and high speed of wire feed. Smooth start of wire feed eliminates the risk of welding defects at the
beginning of the weld.
- 2T / 4T - Choice of one of two operating modes.
- Spool Gun - possibility of welding with type Spool Gun welding holder.
The SPARTUS® MasterMIG 250PFC also has a number of features that support TIG welding processes
(2T/4T mode, current falling speed adjustment, post-gas) and MMA (Hot Start for easier electrode ignition, Arc

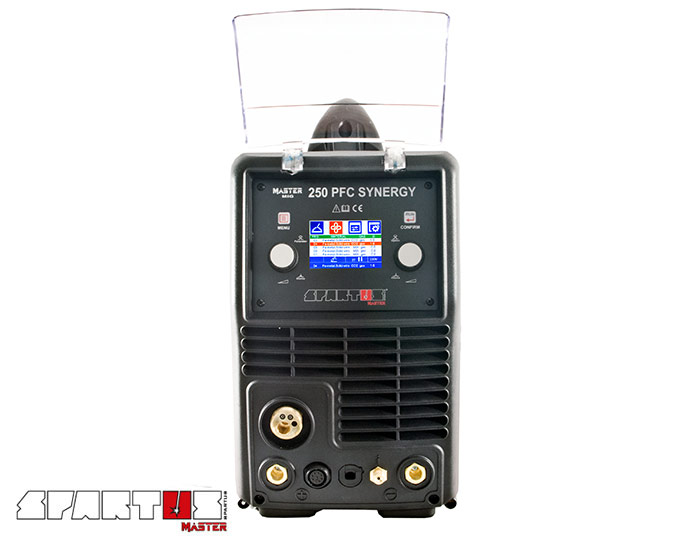

Force for easier welding in forced positions, VRD lower no-load voltage). Functional panel is equipped with a
480x320px colour LCD with an intuitive user interface. It is possible to choose one of several language versions
of the control software (English, German, Czech, Slovak, Lithuanian, Spanish, Portuguese, Russian, French,
Serbian, Polish). By default, the Polish language version of the interface is set.

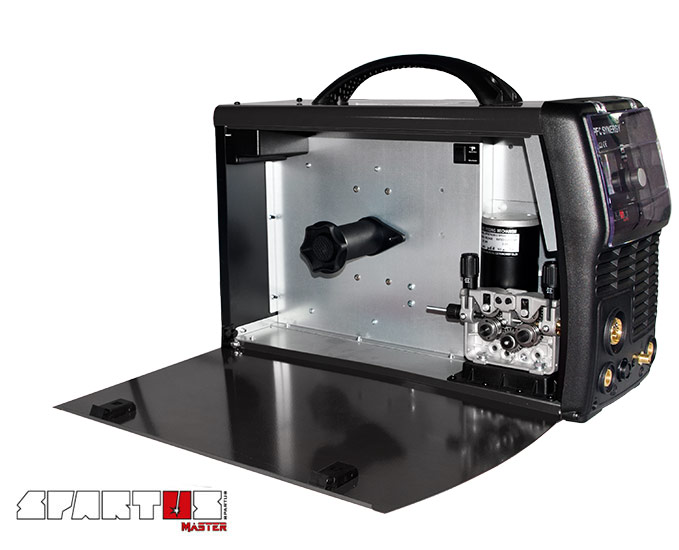

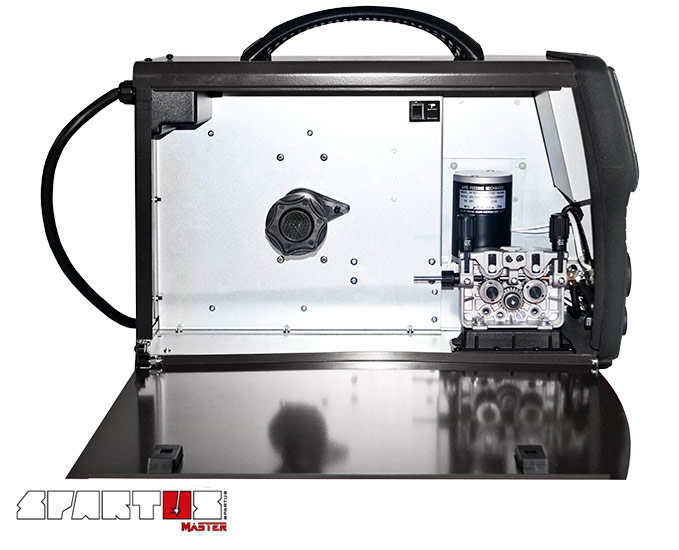

SPARTUS® MasterMIG 250PFC is equipped with a professional four-roll wire feeder, which allows
you to work with a long welding handle regardless of the type of wire used. Despite the small compact size and
weight, the device is compatible with standard spools with welding wire D200 and D300 weighing up to 15kg.
Examples of applications: workshop work, renovation works in the field, automotive - welding of galvanized car
bodies (brazing), muffler welding, production sector, light industry.
Device SPARTUS® MasterMIG 250PFC :
Device SPARTUS® MasterMIG 250PFC
3m work clamp
Gas hose
User's manual
Package price [EUR]:
SPARTUS® MasterMIG 250PFC package:
Device SPARTUS® MasterMIG 250PFC
MIG gun SPARTUS® SPM 240
3m electrode holder
3m work clamp
Gas hose
User's manual
Package price [EUR]:
NOVELTY! Choose the length of the MIG gun yourself!
The price of
the package includes the option of choosing a 3-, 4- or 5-meter MIG gun.
Lack of information results in random length selection.
