TIG 250
SIMPLE IN USE, POWERFUL AND DEPENDABLE TIG DC.
Technical parameters
| Input | ~3× 400V ± 10% 50 / 60 Hz |
| Welding Current TIG [A] | 20 – 250 |
| Duty cycle [%] | 60 |
| TIG PARAMETERS | |
| Down slope [s] | 0 – 5 |
| Gas post flow [s] | 0 – 15 |
| Arc ignition | HF |
| MMA PARAMETERS | |
| MMA welding mode |  |
| Welding current MMA [A] | 20 – 250 |
| Arc Force range [A] | 0 – 60 |
| No-load voltage [V] | 54 |
| OTHER | |
| Current consumpiton [A] | 9,6 |
| Power factor (cosφ) | 0,93 |
| Efficiency η [%] | 85 |
| Insulation class | F |
| Protection class | IP23 |
| Weight [kg] | 18,55 |
| Dimensions [mm] | 530 × 220 × 390 |
Description:

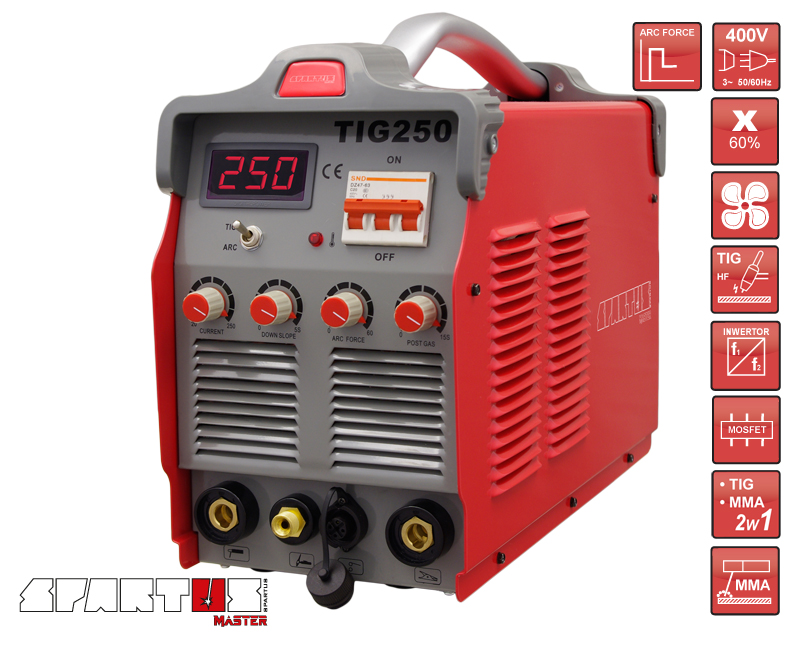

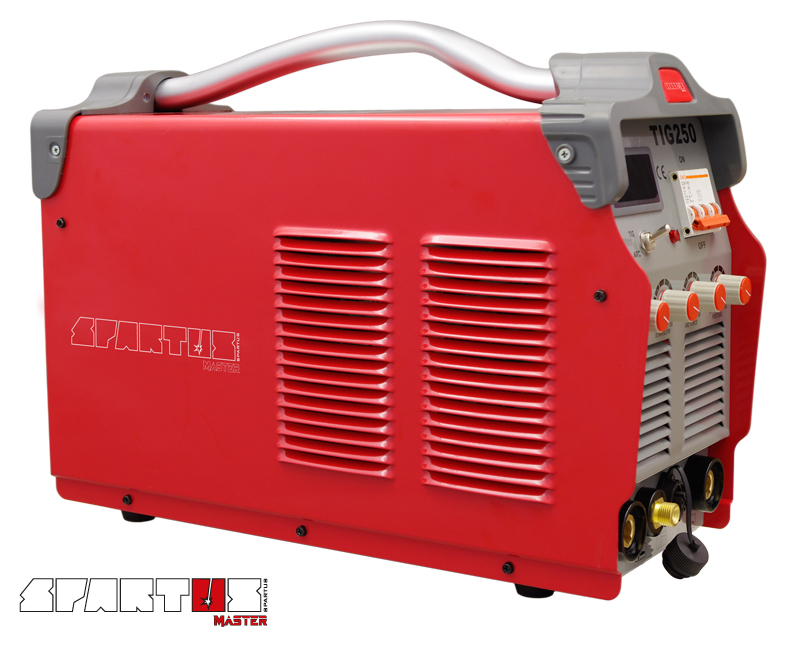

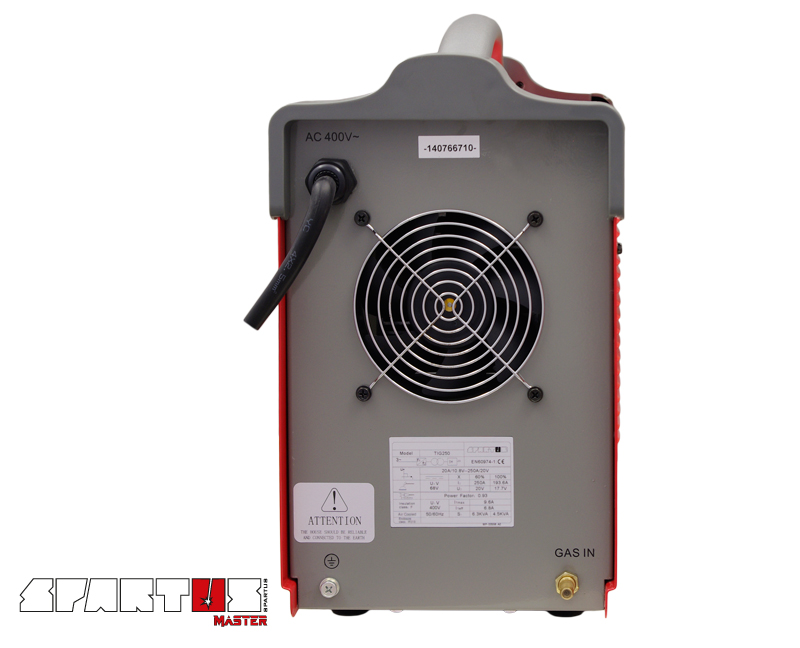

SPARTUS Master TIG 250 small, powerful inverter welding machine allows gas tungsten arc welding (TIG, GTAW) and manual metal arc welding (SMAW, MMA) .
Welding current is up to 250A. It is powered from three-phase 400V source power.
It has easy-to-use control panel with infinitely adjustable: welding current, post gas and down slope. Device is equipped with contactless HF arc ignition system.
Arc Force function (with infinitely adjustable arc power - MMA welding mode). Prevents the stick electrode from “sticking” to welded material, when arc voltage drops excessively, as a result of a sudden shortening of the arc. Arc Force function is irreplaceable, especially when welding in difficult positions (such as overhead position), where often required is short arc welding.
Examples of use: farm, portable repair, workshop, maintenance, constructions.
Standard equipment:
3 meter work clamp
Gas hose
User’s manual
Package equipment:
3 meter electrode holder
3 meter work clamp
Gas hose
Gas regulator SPARTUS Ar/CO2 with flowmeter
TIG torch SPARTUS Master 26 4m
User’s manual
