SPARTUS®
EasyCUT
40 Compressor
LIGHT, MOBIL PLASMA CUTTER WITH BUILT-IN COMPRESSOR
Technical parameters
| Input | ~1 × 230V ± 10% 50 / 60 Hz |
| Cutting current [A] | 20 - 40 |
| Max. cutting thickness [mm] | 25 |
| Duty cycle [%] | 60 |
| PLASMA PARAMETERS | |
| Output working voltage [V] | 96 |
| Recomended work pressure [bar] | 4.5 |
| Air consumption [l/min] | 150 |
| Post gas flow | 20 |
| Contactless pilot arc ignition (no HF) |  |
| OTHER | |
| Current consumpiton [A] | 32 |
| Power factor (cosφ) | 0,7 |
| Efficiency η [%] | 85 |
| Insulation class | H |
| Protection class | IP23 |
| Weight [kg] | 19.5 |
| Dimensions [mm] | 590 × 225 × 410 |
Description:

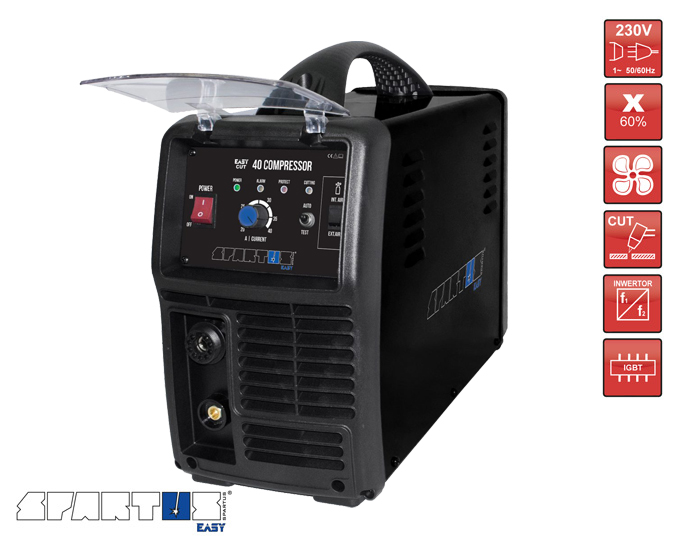

SPARTUS® EasyCUT 40 Compressor is a small size, compact plasma cutter with built-in
compressor of compressed air.
Changing the source of compressed air is done through a switch on the front panel of the device.
Designed for cutting metals and other electrically conductive materials.
We’ve created source of power 40A, thanks to use modern technology. Its maximum of cutting thickness is
25 mm. Built-in
compressor gives compressed air, which is needed to make a plasma arc.
SPARTUS® EasyCUT 40 Compressor device is equipped with the many of modern solutions to
support the process of
plasma cutting. Built-in system of contactless pilot arc ignation without HF – ensures excellent quality
of cutting and longer
life of consumables.
Package equipment:
SPARTUS® EasyCUT 40 Compressor device
Plasma torch SPARTUS® 45H 6m*
PLASMA toolbox (consumable kit)
Air filter with the pressure control
3m work clamp
Gas hose
User’s manual
* 4 holes retaining cap (60389K4) to be used in EasyCUT 40 Compressor
